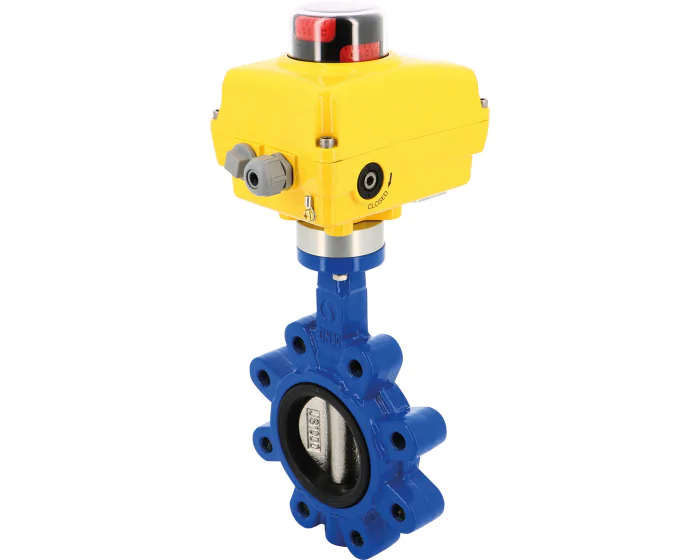

The 1135 LUG butterfly valve has a ductile iron GL body, a nickel-plated ductile iron disc and an EPDM seat. It is actuated by an SA/NA electric actuator.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 416 |
| Manual override | By key |
| Declutchable | No |
| DN | DN50 - 2'' |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 43.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Seat | EPDM |
| Body material | Ductile iron |
| Number of ways | 2 |
| Disc material | Nickel-plated ductile iron |
| PS (bar) | 16 |
| Power (W) | 6 |
| Connections | Between flanges PN10/16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator series | SA/NA series |
| Operating time (s) | 17.0 |
| Voltage | 230 V AC |
| TS max (°C) | 90 |
| TS min (°C) | -10 |
| Butterfly valve design | Concentric |
| Wafer/lug | Lug |
| Warranty period | 1 year |
| CE | Risk category I |
| Range | HVAC |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 Ductile iron Concentric DN50 - 2'' 230 V AC | 262504023010 | S1003849 |
€475.24
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN50 - 2'' 24 V AC/DC | 262504023011 | S1003850 |
€475.24
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN65 - 2''1/2 230 V AC | 262505023010 | S1003851 |
€482.66
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN65 - 2''1/2 24 V AC/DC | 262505023011 | S1003852 |
€482.66
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN80 - 3'' 230 V AC | 262506023010 | S1003853 |
€487.26
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN100 - 4'' 230 V AC | 262507023010 | S1003854 |
€493.27
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN100 - 4'' 24 V AC/DC | 262507023011 | S1003855 |
€493.27
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN125 - 5'' 230 V AC | 262508023069 | S1003856 |
€608.94
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN150 - 6'' 230 V AC | 262509023130 | S1003857 |
€1,094.84
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN200 - 8'' 230 V AC | 262510023130 | S1003858 |
€1,168.84
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN250 - 10'' 230 V AC | 262511023150 | S1003859 |
€1,625.79
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Ductile iron Concentric DN300 - 12'' 230 V AC | 262512023180 | S1003860 |
€2,015.61
(excl. btw)
|
add to cart |
